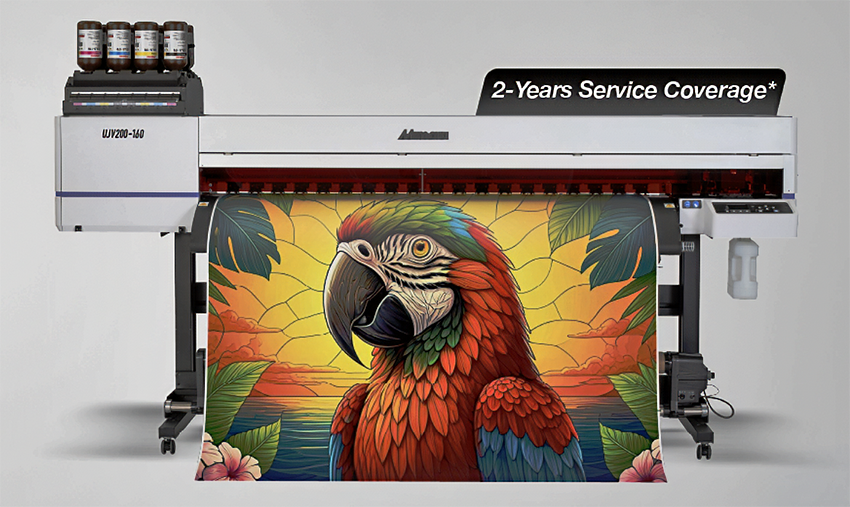

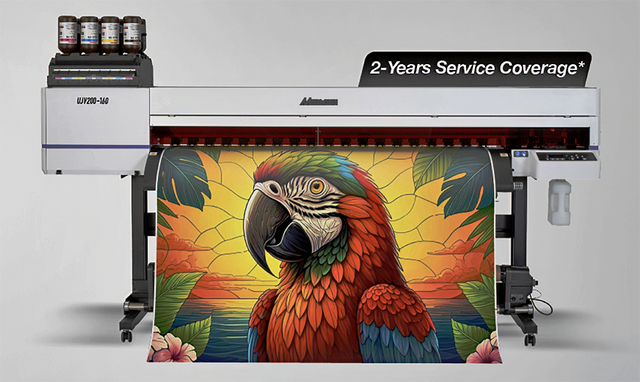

Mimaki UJV 200 Series Printers
Mimaki UJV 200 Series Printers - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Mimaki UJV200 Series offers high-quality UV-LED roll-to-roll printing designed to reduce hidden costs and improve productivity. Instant UV curing eliminates waiting times before and after printing, while avoiding the high heat used by latex systems that increases power consumption and limits media compatibility. Beautiful color solids and smooth skin tones.
From the VDT and MAPS4, sharper fine lines from new DAS2 system. The UJV200 enables stable multi-layer printing without pullback, excellent abrasion resistance for floor graphics, and supports high-value applications using clear ink. With low-odor, SVHC/CMR-free inks. The UJV200 Series provides a safer work environment and consistent output quality.
UJV 200-130 Price to be determined.
-
Instant UV‑LED Curing
Instant UV‑LED curing eliminates drying and curing delays -
Heat‑Sensitive Media Compatibility
No high heat required—print on heat‑sensitive materials -
Energy‑Efficient Operation
Lower power consumption compared to latex systems -
User‑Controlled Ink Optimization
Simple, user‑defined ink reduction capability -
Advanced Multi‑Layer & Texture Printing
Supports multi‑layer and textured printing for premium applications -
Superior Abrasion Resistance
Excellent abrasion resistance, ideal for floor signs -
Safer, Low‑Odor Ink Chemistry
Low‑odor SVHC/CMR‑free inks improve work environment safety
-
Clear Ink Special Effects
Clear ink enables high‑value gloss and matte effects -
Rapid Maintenance Cycles
5× faster cleaning times -
Automated Media & Dot Adjustment (DAS2)
Easy, automated, and faster adjustments for DAS2, reducing media waste and operator time -
Lamifit™ Technology
Lamifit Technology for silvering free Lamination -
Intuitive User Experience
Simplified printer operation -
High‑Precision Variable Dot Control
Variable Dot Technology down to 4 picoliters (4pl) -
Multi‑Level Ink Reduction Control
Adjustable ink reduction feature with 5 selectable levels -
Maximum Media Versatility
High‑value prints on virtually any media
|
Printhead |
Single on-demand piezo head |
|
Print Resolutions |
600 dpi, 900 dpi, 1200 dpi X: 600 dpi, 1200 dpi |
|
Print Speed (4 color mode) |
UJV200-160 High Speed: 269.1 sqft/hr (25.0 sqm/h ) Standard: 150.7 sqft/hr (14.0 sqm/hr)
UJV200-130 High Speed: 236.8 sqft/hr (22.0 sqm/h) Standard: 139.9 sqft/hr (13.0 sqm/hr) |
|
Maximum Print Width |
UJV200-160: 63.4 in (1610 mm) UJV200-130: 53.5 in (1360 mm) |
|
Media Thickness |
Up to 2 mm |
|
Maximum Media Weight |
Max 55 lbs (25 kg) roll weight |
|
Ink Type |
ELS-170 ink sets – Dual CMYK or 4C+W,W, or 4C, CL,CL,W,W (*ELS-175 / *LUS-210 LATAM Market Only) |
|
Ink Package Size |
1L bottle |
|
Interface |
(Recommended) Ethernet 1000 BASE-T, USB 2.0 Hi-Speed |
|
Power Supply |
AC100-120V (11A) or AC200-240V (5.5A) |
|
Power Consumption |
Max 1320W Standard 550W Min 4.5W |
|
Operational Environment |
Temperature: 68 – 86 ˚F (20-30 ˚C) |
|
Dimensions (W × D × H) |
UJV200-160: 109.1 in × 29.4 in × 55.3 in (2770 mm × 748 mm × 1405 mm) UJV200-130: 99.2 in ×29.4 in × 55.3 in (2520 mm × 748 mm × 1405 mm) |
|
Weight |
UJV200-160: 352 lb (160 kg); UJV200-130: 342 lb (155 kg) |
|
Options |
NCU – OPT-J0422 Leveling Foot – OPT-J0502 – Supports media weights up to 45 kg Ionizer 1600 – OPT-J0545 |
|
Certifications |
IEC 62368 1, CE (EMC, Low Voltage, Machinery Directive, RoHS), REACH, VCCI Class A, FCC Class A, RCM, EAC, ENERGY STAR |
