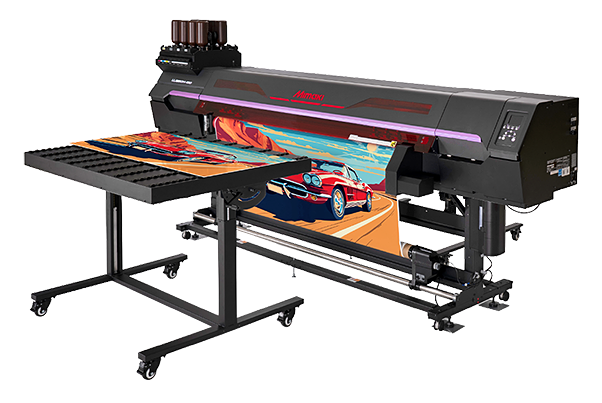

Mimaki UJ 330H-160

The new for 2026 Mimiki UJ330H-160 seamlessly handles an exceptional range of roll and rigid media.

Using Mimaki's 330 series print engine, the UJ330H 160 delivers the perfect balance of speed and precision. Its dual printheads and 6 color configuration offer flexible setups, including - x2 CMYK or CMYK + Clear + White, or CMYK + Light Cyan + Light Magenta + White.

The versatile printer features a generous 2-inch (50.8 mm) head clearance and an innovative vacuum transport belt system that eliminates pinch rollers - minimizing marks and enabling smooth, accurate printing on even the thinnest media.

Resolutions up to 1200 × 1800 dpi and Mimaki’s complete suite of core technologies - NCU, NRS, DAS2, VDT, MWDT, MAPS4, and Mimaki PICT—smarter automation, consistent performance, and the power to monitor everything from ink usage to production status right from your phone. Capable of 5 layer and 2.5D texture printing, the UJ330H 160 delivers a truly robust, intuitive hybrid experience.

• Dual-Media Versatility in a Single Footprint: The UJ330H-160 allows users to switch between rigid and roll-to-roll applications in minutes, enabling the production of everything from window graphics and vehicle wraps to 4×11-foot aluminum composite signs on one machine.
• Innovative Belt Transport System: Unlike conventional methods, the newly developed belt conveyor system provides stable, consistent transport for thin films and fabrics, effectively suppressing the wrinkles and loosening that other printers experience, for high-quality exhibition and retail signage.
• Heavy-Duty Rigid Media Support: Equipped with Auto-Vacuum and front/rear lock rollers, the printer can handle large and heavy materials, including 2-in thick board and standard signboard materials like aluminum composite plates.
• High-Value Specialty Printing: The printer supports multilayered printing (up to five layers), textured embossing effects, and gloss or matte finishes using clear ink, allowing shops to offer premium, high-margin products.
• Flagship Image Quality & Productivity: As part of the 330 Series, it delivers industry-leading image quality with a high throughput of 22.0 sqm/hr, ensuring high-definition graphics and smooth gradients that capture customer attention.
• Space and Cost Efficiency: By consolidating two functions into one unit, customers can maximize limited floor space and reduce capital investment costs compared to purchasing separate dedicated flatbed and roll-to-roll printers.
• User-Friendly Automation: Advanced automatic adjustment functions allow operators to maintain optimal conditions and consistent quality without needing specialized skills, reducing training requirements and the likelihood of operator error.
• Safe and Environmentally Conscious: The UV inks are designed to be free of SVHC and CMR substances, ensuring a safer workplace for operators and compliance with global environmental regulations.
• LamiFit Technology: Mimaki’s Innovative solution to board lamination “Silvering” problem. LamiFit will fill the blank areas of the print with clear ink to keep the media topography level to negate trapped air bubbles during lamination.
• Eco Friendly power Solution: Total maximum power usage is only 1.6kW compared to Latex at 5Kw and Eco-Solvent at 2.9kW.



Print head	2 heads (staggered) 4 print bars per head
Print Resolutions	Y : 600, 1200 dpi X : 600, 900, 1200, 1800 dpi
Print Speed (4 Color Mode)	236.8 sqft/hr, (22.0 sqm/hr,) max
Maximum Print Width or Maximum Print Area	Rigid – 4ft x 11ft
Maximum Media Width or Maximum Media Size	Roll – 64 in (1620mm)
Maximum Media Thickness	up to 2 in (50 mm)
Maximum Media Weight	Rigid – up to 55lbs (25 KG)  Roll – up to 99lbs (45Kg)
Ink Type	ELS-170 & ELS-175* – CMYK-KYMC / CMKY +Cl +WW / CMYK +Lm +Lc +WW *LUS-210 – CCMMYYKK / CCMMYK +WW (*only sold in certain countries)
Ink Package size	1 Liter
Interface	(Recommended) Ethernet 1000BASE-T USB 2.0 Hi-Speed
Power Supply	AC (100–120V / 200–240V ±10%) ×2, 50/60Hz ±1Hz
Power Consumption	Maximum – 1600W Average during operation 800W Sleep mode 4.5W or less
Operational Environment	Temperature:  68˚ to 86˚ / F (20˚ to 30 C) Humidity:  35% to 65%
Dimensions (W × D × H)	W126.9″x D30.9″x H55.9″  / 3,225mm x 785mm x 1,420mm (without tables) W126.9×D104.9×H55.9” / 3,225mm×2,664mm×1,420mm (with one set of tables) W126.9×D185.5×H55.9”) / 3,225mm×4,712mm×1,420mm / (with two sets of tables )
Weight	849 lbs. (386 kg)
Certifications	Compliant with 62368-1, IEC CB、CE（EMC, Low voltage, Machinery directive, and RoHS） REACH、VCCI Class A、FCC Class A KC、RCM、EAC, UKCA、EnergyStar

Inks: Magenta, ELS170-M-BA; Yellow, ELS170-Y-BA; Black, ELS170-K_BA; Light Cyan, ELS170-LC_BA; Light Magenta, ELS170-LM_BA; White, ELS170-W-BA; Clear, ELS170-CL-BA

download UJ 330H-160 brochure
