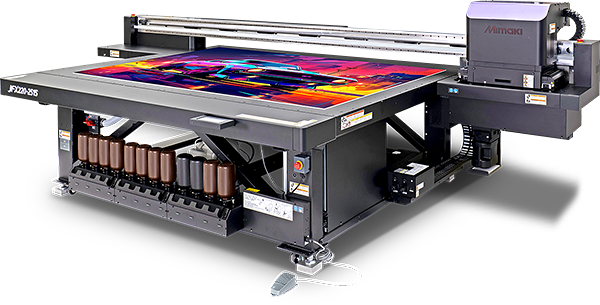

JFX 220-2515 UV-LED Flatbed Printer

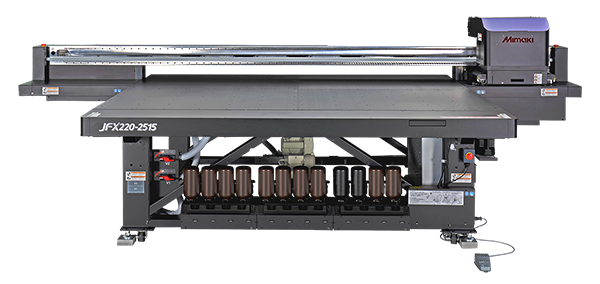

Mimaki JFX220-2515 UV-LED Flatbed Printer

High-Speed Flatbed Production – Up to 602.7 Sq. Ft./Hr.

The Mimaki JFX220-2515 is a next-generation large-format UV-LED flatbed printer engineered for high-speed production, exceptional print quality, and expanded application versatility.

Configured with a standard CMYK-only ink set, the JFX220-2515 reaches production speeds of up to 602.7 sq. ft./hr. — approximately 17 4' × 8' boards per hour.* For applications requiring white ink, the printer can produce up to 376.7 sq. ft./hr. in 4 Color + White, 300 × 300 HQ, 4-pass mode.

Combined with a 98.4" × 59.1" maximum print area, media support up to 4" thick, and Mimaki's new ANCHOR TECHNOLOGY, the JFX220-2515 is built to reduce setup time, increase throughput, and give print providers the flexibility to take on everything from high-volume signage to premium specialty applications.

Faster Production Without Sacrificing Print Quality

The JFX220-2515 delivers a major productivity advantage for sign and display production. The high-speed CMYK configuration is ideal for businesses producing signs, POP displays, campaign graphics, and other applications where fast turnaround and volume are critical.

Even at higher production speeds, Mimaki designed the JFX220-2515 to maintain rich, uniform color reproduction, including challenging deep blues and reds.

Production Speed Highlights:

• Up to 602.7 sq. ft./hr. with the CMYK-only ink configuration

• Approximately 17 4' × 8' boards per hour*

• Up to 376.7 sq. ft./hr. with 4 Color + White in 300 × 300 HQ, 4-pass mode

• Maximum print resolution up to 1200 dpi

• UV-LED curing for immediately cured output

New ANCHOR TECHNOLOGY – Less Setup, More Printing

The JFX220-2515 introduces Mimaki's innovative ANCHOR TECHNOLOGY, a newly developed vacuum-table system that automatically concentrates suction where the substrate is positioned.

Traditional flatbed printers can require operators to mask unused vacuum holes to maintain adequate holding force. ANCHOR TECHNOLOGY greatly reduces this preparation work by efficiently securing the area where the substrate is placed.

The system can also securely hold challenging or warped materials, including corrugated board and acrylic sheets, helping provide stable printing while reducing the time between jobs.

Large 98.4" × 59.1" Print Area

The JFX220-2515 offers a maximum print area of 98.4" × 59.1" (2,500 × 1,500 mm), easily accommodating standard 4' × 8' sheets as well as oversized graphics.

It accepts media up to 4" (101.6 mm) thick, dramatically expanding the range of products that can be printed directly.

Applications include:

• Indoor and outdoor signage

• POP and retail displays

• Exhibition graphics

• Acrylic

• Corrugated board

• Wood

• Plastics

• Metal

• Packaging and prototypes

• Interior décor

• Promotional fixtures

• Industrial components

• Dimensional and specialty graphics

Specialty Inks for Higher-Value Applications

The JFX220-2515 offers multiple UV-curable ink configurations, allowing print providers to configure the machine around their production requirements.

Available ink options include:

• CMYK

• Light Cyan & Light Magenta

• White

• Clear

• Primer

• Fluorescent Pink

• Fluorescent Yellow

New fluorescent Pink and Yellow inks enable exceptionally vivid colors that can be difficult to reproduce with standard CMYK alone—ideal for event graphics, retail POP, promotional displays, brand graphics, and other applications where maximum visual impact is important.

White ink expands printing capabilities on clear and colored substrates, while Clear and Primer provide additional options for specialty finishes and difficult materials.

Dimensional & Textured Printing

The JFX220-2515 goes beyond conventional flat graphics with support for dimensional and textured printing.

Raised ink effects can be used to create tactile graphics, specialty signage, décor, artwork, and other premium applications—giving print providers opportunities to differentiate their output and offer higher-value products.

Built for Reliable Production

Mimaki equips the JFX220-2515 with technologies designed to maintain print quality, optimize throughput, and reduce interruptions during production.

Key Mimaki technologies include:

• Nozzle Recovery System (NRS)

• Nozzle Check Unit (NCU)

• Mimaki Circulation Technology (MCT)

• Mimaki Bulk Ink System (MBIS)

• Uninterrupted Ink Supply System

• Mimaki Fine Diffusion (MFD)

• Waveform Control

• Mimaki Advanced Pass System (MAPS)

The printer also features three 1200 dpi (max.) print heads, two vacuum areas controlled by a convenient foot switch, automatic media-thickness measurement, media-jam sensors, and support for both 1-liter and 250 ml ink bottles.

JFX220-2515 Highlights

• Up to 602.7 sq. ft./hr. CMYK production speed

• Approximately 17 4' × 8' boards per hour*

• Up to 376.7 sq. ft./hr. with 4 Color + White

• 98.4" × 59.1" maximum print area

• Handles substrates up to 4" thick

• Resolution up to 1200 dpi

• New ANCHOR TECHNOLOGY vacuum-table system

• Three high-resolution print heads

• Automatic media positioning

• UV-LED instant curing

• White, Clear and Primer ink options

• Fluorescent Pink and Yellow ink options

• Dimensional and textured printing capabilities

• Rigid and flexible UV ink options

• Gigabit Ethernet connectivity

Increase Production. Expand Your Capabilities.

The Mimaki JFX220-2515 is designed for print businesses that need more than just another flatbed printer. Its combination of up to 602.7 sq. ft./hr. production speeds, ANCHOR TECHNOLOGY, a large-format print area, 4" media capability, and extensive specialty ink options gives shops the ability to increase everyday production while expanding into new, higher-margin applications.

Whether you're producing high-volume 4' × 8' signage, retail displays, specialty graphics, dimensional prints, or custom industrial applications, the JFX220-2515 provides the speed and versatility to grow your flatbed printing capabilities.

Contact DotWorks today for JFX220-2515 pricing, demonstrations, installation, training, and configuration options.

Approximately 17 4' × 8' boards per hour is Mimaki's stated comparison based on print speed and excludes substrate loading time. Actual production speed varies based on print mode, ink configuration, media, artwork, and production workflow.
