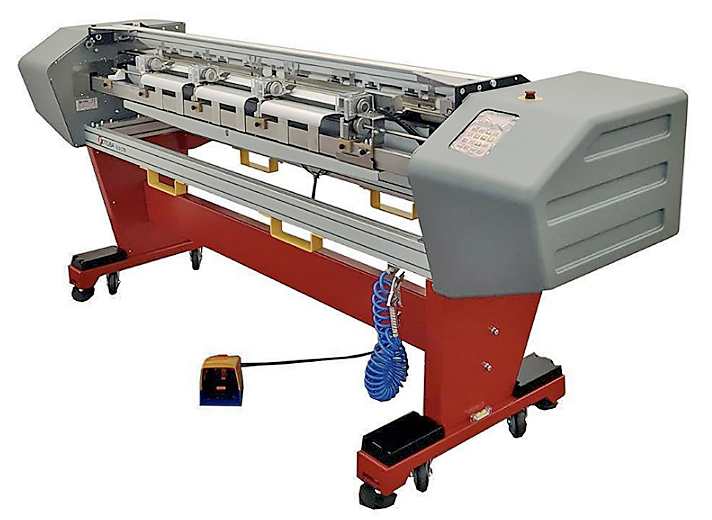

Fotoba XLE 170 Digital Cutter
Regular price
$0.00
Unit price
/
Unavailable
Fotoba XLE 170 Digital Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The XLE 170 is a simplified version of the XLD 170 standard where the following features have been removed:
- Digitrim sheet function
- Automatic X correction
- The XLE 170 is industrial built, ergonomic and keeps the possibility to add all XLD accessories while being more accessible.
Features
- Automatic tracking to the image edge (Y)
- Max linear speed 50-ft per minute
- Vertical Slitters: Single, 8mm double or adjustable double
- Cutting by length & quantities for media conversion
- Memory channels to store different cut marks
- All mechanism controlled by stepper motors
- Automatic scanning of cut marks
- Accuracy +/- 0.5 mm (0.02 in.)
- Max. Linear Speed 50-ft per minute
Specifications
- Max paper width: 170 cm – 67 in.
- Min paper width: 28 cm – 11 in.
- Max roll diameter allowed: 26 cm – 10 in.
- Max cutting thickness: 1 mm – 0.04 in.
- Feeding speed: 50 ft. per min.
- X cutting accuracy: No X-axis correction
- Y cutting accuracy: 1 mm – 0.04 in.
- Net Weight: 550 lbs.
- Dimensions: 110″ x 36″ x 44″
Fotoba XLE 170 Digital Cutter
Regular price
$0.00
Unit price
/
Unavailable
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Colex
Fotoba XLE 170 Digital Cutter
The XLE 170 is a simplified version of the XLD 170 standard where the following features have been removed:
- Digitrim sheet function
- Automatic X correction
- The XLE 170 is industrial built, ergonomic and keeps the possibility to add all XLD accessories while being more accessible.
Features
- Automatic tracking to the image edge (Y)
- Max linear speed 50-ft per minute
- Vertical Slitters: Single, 8mm double or adjustable double
- Cutting by length & quantities for media conversion
- Memory channels to store different cut marks
- All mechanism controlled by stepper motors
- Automatic scanning of cut marks
- Accuracy +/- 0.5 mm (0.02 in.)
- Max. Linear Speed 50-ft per minute
Specifications
- Max paper width: 170 cm – 67 in.
- Min paper width: 28 cm – 11 in.
- Max roll diameter allowed: 26 cm – 10 in.
- Max cutting thickness: 1 mm – 0.04 in.
- Feeding speed: 50 ft. per min.
- X cutting accuracy: No X-axis correction
- Y cutting accuracy: 1 mm – 0.04 in.
- Net Weight: 550 lbs.
- Dimensions: 110″ x 36″ x 44″
