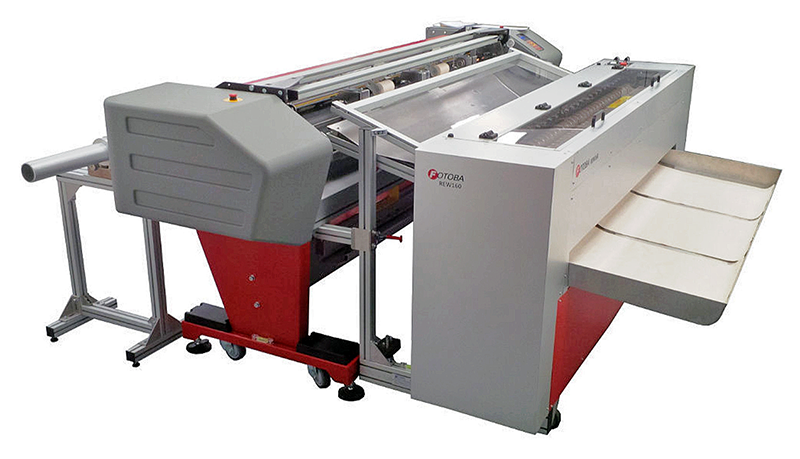

Fotoba XLD WP - Wallpaper Cutter

The new Dreamcut XLD 170 WP is the perfect solution for cutting tiles of wallpaper with extremely high accuracy to enable side by side wall application. The side sensor correction can perform an accuracy of up to 0.065mm (.002-inches) producing high precision cutting. Fotoba XY Automatic Cutters are designed to work with both rolls and sheets and can handle all flexible media up to a maximum thickness of 40 mil.

The Dreamcut XLD 170 is capable of handling the output of several printers. It is the ideal companion to the new fast printers including 5 meter/16 foot machines printing three 60” rolls simultaneously. It cuts a 150 foot roll in under 10 minutes!

For media up to 67” Auto X & Y Cut Adjust

Features

• Self squaring to the edge of the image (X)
• Automatic tracking to the image edge (Y)
• Max linear speed 50-ft per minute
• Vertical Slitters: Single
• Optional manual length entry
• Memory channels to store different cut marks
• All mechanisms controlled by stepper motors
• Automatic scanning of cut marks
• Self sharpening blade system
• Accuracy: X +/- 0.5 mm (0.02 in.) and Y +/- 0.06mm(0.002 in)

Specifications

• Max paper width: 170 cm – 67 in.
• Min paper width: 28 cm – 11 in.
• Max roll diameter allowed: 26 cm – 10 in.
• Max cutting thickness: 1 mm – 0.04 in.
• Feeding speed: 50 ft. per min.
• X cutting accuracy: 1 mm
• Y cutting accuracy: 0.068 mm
• Net Weight: 650 lbs.
• Dimensions: 110″ x 36″ x 44″
