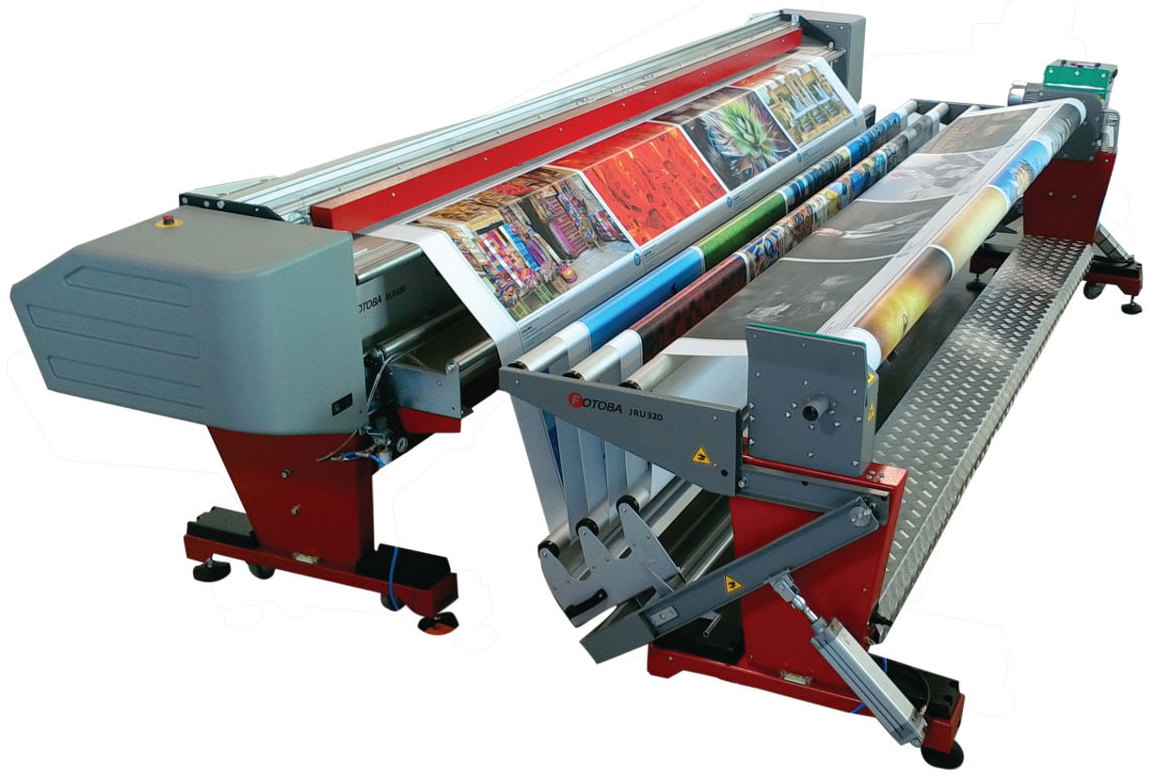

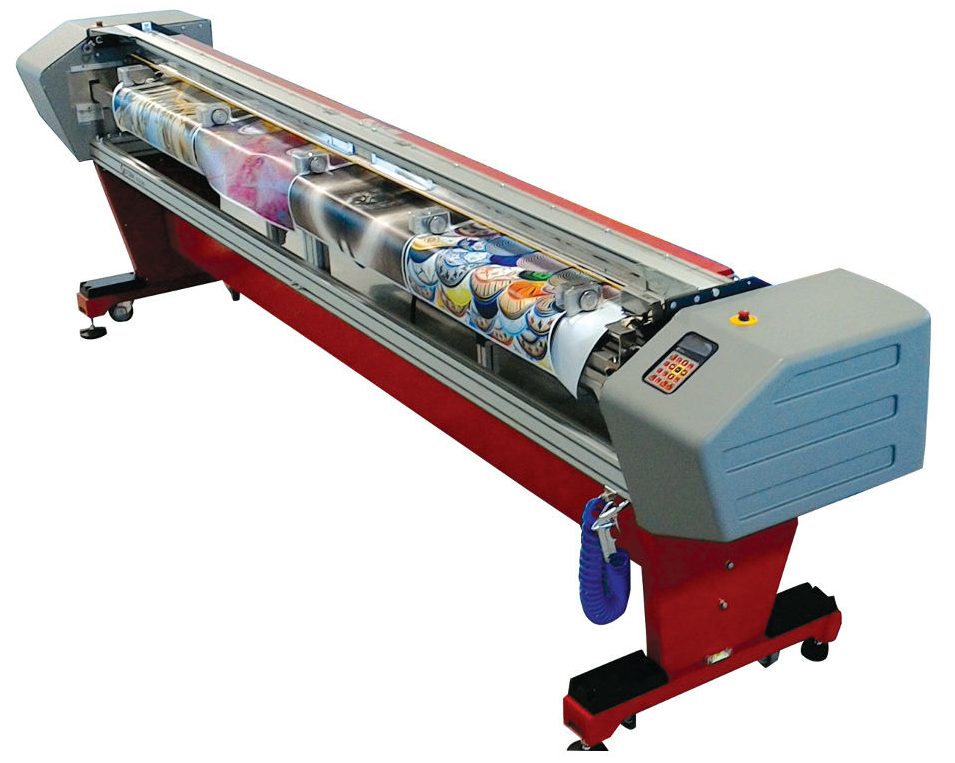

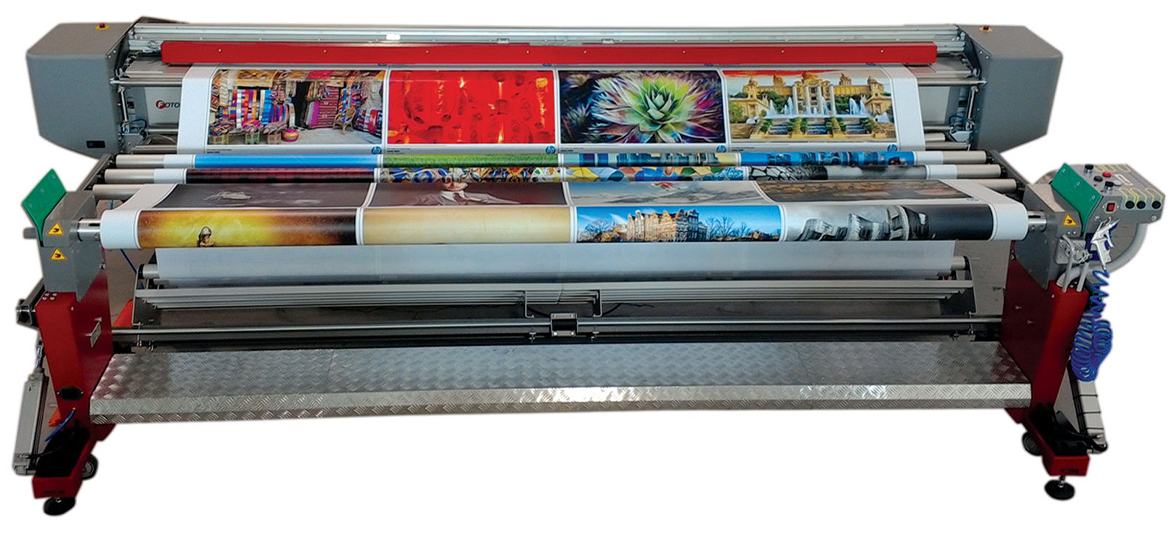

Fotoba XLD 320 HS Super Wide XY Cutter
Fotoba XLD 320 HS Super Wide XY Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Automatic XY Cutting Up to 126” Wide
The FOTOBA XLD series eliminates the bottlenecks in your finishing department. A single cutter is capable of handling the output of several printers. XLD cutters use FOTOBA CUTMARKS to follow the edge of the images. Regardless of any feed misalignment, the XLD will automatically realign itself to the edge of the printed image. The XLD 320 cutter will always produce square finished images even if the printer fails to print parallel to the media edge or if the printer fails to wind up the rolls squarely (telescoping).
Features
- Self squaring to the edge of the image (X)
- Automatic tracking to the image edge (Y)
- Max linear speed 50-ft per minute
- Vertical Slitters: Single, 8mm double or adjustable double
- Cutting by length & quantities for media conversion
- Memory channels to store different cut marks
- All mechanisms controlled by stepper motors
- Automatic scanning of cut marks
- Self sharpening blade system
For media up to 130” Auto X & Y Cut Adjust
Technical Specification
Max paper width: 320 cm – 130 in.
Min paper width: 50 cm – 20 in.
Max roll diameter allowed: 26 cm – 10 in.
Max cutting thickness: 1 mm – 0.04 in.
Feeding speed: 100 ft. per min.
X cutting accuracy: 1 mm – 0.04 in.
Y cutting accuracy: 1 mm – 0.04 in.
Net Weight: 705 lbs.
Dimensions: 169″ x 28″ x 46″
download brochure
