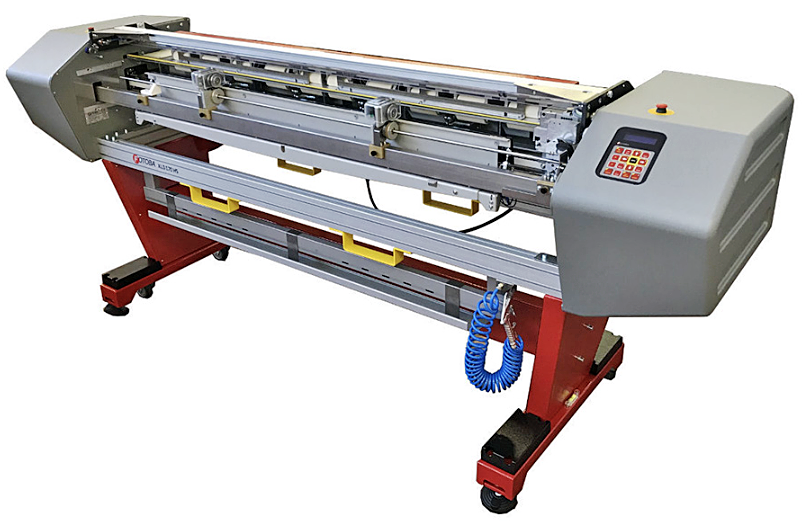

Fotoba XLD 170 HS

The XLD170HS doubles the speed of the XLD Standard models. There are two versions:>

• XLD 170 HS with double cut in one pass (patented) to reduce the cutting time when cutting small sizes. This version is recommended for paper cutting only.

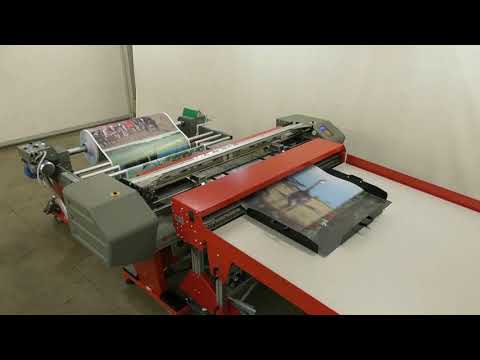

• XLD 170 HS with double cut in two passes. It is the perfect solution for trimming all the flexible media output up to 1.7 m/67in in the fastest turnaround time.

Features

• Self squaring to the edge of the image (X)
• Automatic tracking to the image edge (Y)
• Max linear speed 50-ft per minute
• Vertical Slitters: Single, 8mm double or adjustable double
• Cutting by length & quantities for media conversion
• Memory channels to store different cut marks
• All mechanisms controlled by stepper motors
• Automatic scanning of cut marks
• Accuracy +/- 0.5 mm (0.02 in.)
• Max. Linear Speed 100-ft per minute

For media up to 67” High Speed Auto X & Y Cut Adjust

Specifications

• Max paper width: 170 cm – 67 in.
• Min paper width: 28 cm – 11 in.
• Max roll diameter allowed: 26 cm – 10 in.
• Max cutting thickness: 1 mm – 0.04 in.
• Feeding speed: 100 ft. per min.
• X cutting accuracy: 1 mm – 0.04 in.
• Y cutting accuracy: 1 mm – 0.04 in.
• Net Weight: 650 lbs.
• Dimensions: 110″ x 36″ x 44″
