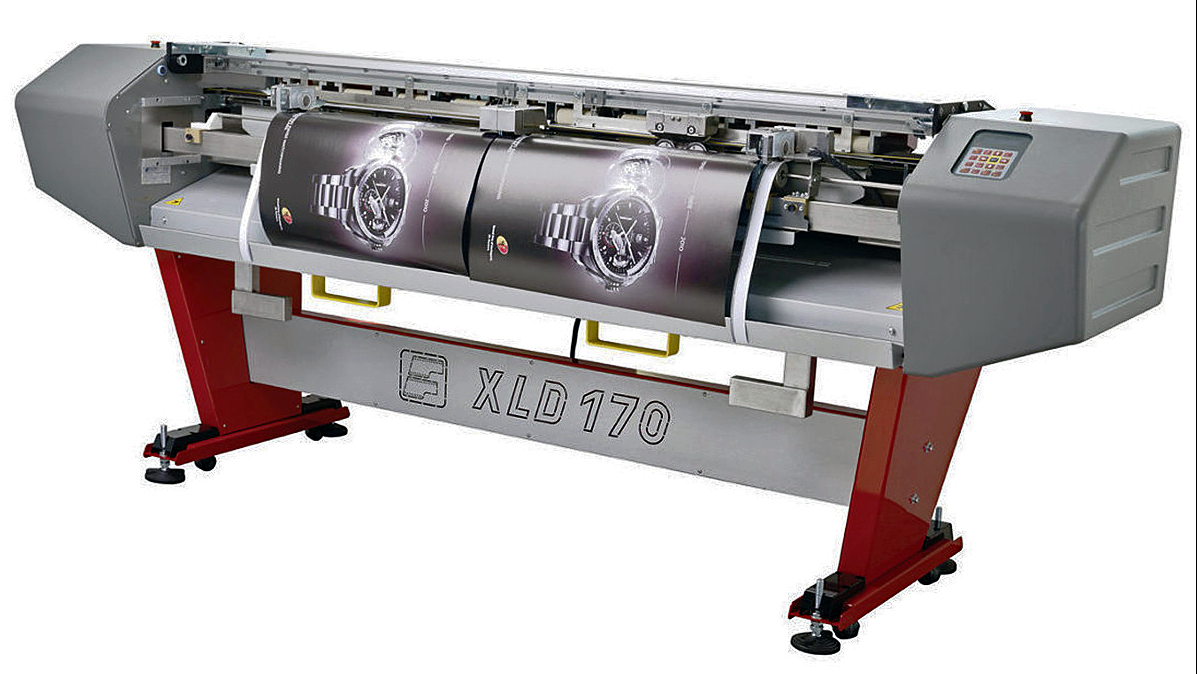

Fotoba XLD 170 Digital Cutter
Fotoba XLD 170 Digital Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The XLD 170 is the most flexible of all FOTOBA XY cutters. Designed to work with both ROLLS and SHEETS, it is the perfect solution to trim all the flexible media output up to 1.7 m/67in.
Regardless of any feed misalignment, the XLD 170 will automatically re-align itself to the edge of the printed image. If the printer fails to print parallel to the media edge, or if the printer fails to wind up the roll squarely, the XLD 170 true edge tracking always produces perfectly squared posters.
XLD 170 cutters can handle most flexible media up to a maximum thickness of 0.8mm (32ml) including polycarbonate, photo paper, vinyl, self-adhesive vinyl, PVC, film, duratrans, TDF, canvas, laminated or encapsulated prints and much more.
It cuts a 150 foot roll in under 15 minutes!
For media up to 67” Auto X & Y Cut Adjust
Features
- Self squaring to the edge of the image (X)
- Automatic tracking to the image edge (Y)
- Max linear speed 50-ft per minute
- Vertical Slitters: Single, 8mm double or adjustable double
- Cutting by length & quantity for media conversion
- Memory channels to store different cut marks
- All mechanisms controlled by stepper motors
- Automatic scanning of cut marks
- Accuracy +/- 0.5 mm (0.02 in.)
- Max. Linear Speed 50-ft per minute
Specifications
- Max paper width: 170 cm – 67 in.
- Min paper width: 28 cm – 11 in.
- Max roll diameter allowed: 26 cm – 10 in.
- Max cutting thickness: 1 mm – 0.04 in.
- Feeding speed: 50 ft. per min.
- X cutting accuracy: 1 mm – 0.04 in.
- Y cutting accuracy: 1 mm – 0.04 in.
- Net Weight: 550 lbs.
-
Dimensions: 110″ x 36″ x 44″
