Fotoba XLA 170
Fotoba XLA 170 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

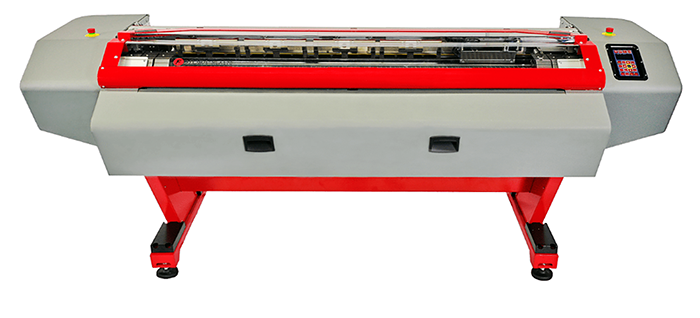

The XLA 170 is controlled by a barcode reader. When the printed size on the roll media changes, the XLA 170 stops and moves the slitters into the correct position and continues to cut automatically.
For media up to 67” Includes: (6) Double Slitters, Maximum Images side by side (5). Note: Slitters cannot be removed or added

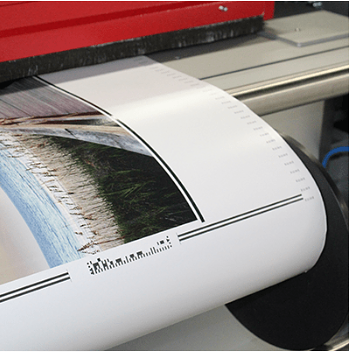

- Bar Code Reader: A bar code is printed on the sheet outside of the image, then the bar code reader interprets the cut data, and the vertical rotary slitters are set to cut the position automatically.
- Slitter Automation: The XLA-170 features six double rotary slitters with the ability to cut up to five equal size prints, side by side. If there are less than five print sizes, side by side, the rotary slitters move out of the way.
- Increased Productivity: In the past, different image sizes in the same media roll required the operator to stop the cutter, reposition the vertical slitters and restart the cutter for each image change. The new Fotoba XLA170 does this operation automatically, removing operator errors.
- Applications: The Fotoba XLA170 automatic digital cutter, combined with a roll to roll printer, opens a wide range of graphic applications for the print service provider. The XLA-170, can cut a wide variety of materials that include and are not limited to; wall coverings, floor graphics, paper, posters, SAV (decal material), stickers, banner, window graphics, signs & canvas.
- Wallpaper: The XLA utilizes technology for high precision cutting applications such as butt joint wallpaper installation applications. The XLA affords the opportunity to eliminate wallpaper overlap for a smooth continuous look for wallpaper dècor.
Compensation: Self-squaring to the edge of the image (X)
Sensor: Automatic barcode reader and slitter alignment to vertical axis
Automatic: Automatic scanning of barcode made with RIP software
Versatility: Automatically adjust cuts of sheet size and quantity up to 5 images on the web width of the media
Max. Cutting Width: 67 inches
Min. Cutting Width: 8 inches
Min. Supply Roll Width: 33.5 inches
Cutter Dimensions & Weight: 110” x 34” x 44” | 550 lbs.
Shipping Dimensions & Weight: 119” x 48” x 57” | 1,200 lbs.
Substrates: Up to 40 mil thick
Memory: Memory channels to store different cut marks
Blades: Self-sharpening blade system
Loading: Auto-grip for easy loading of media
Cutting: Six vertical slitters included; no additional slitters can be added
Motor: Mechanism controlled by stepper motors
download brochure
