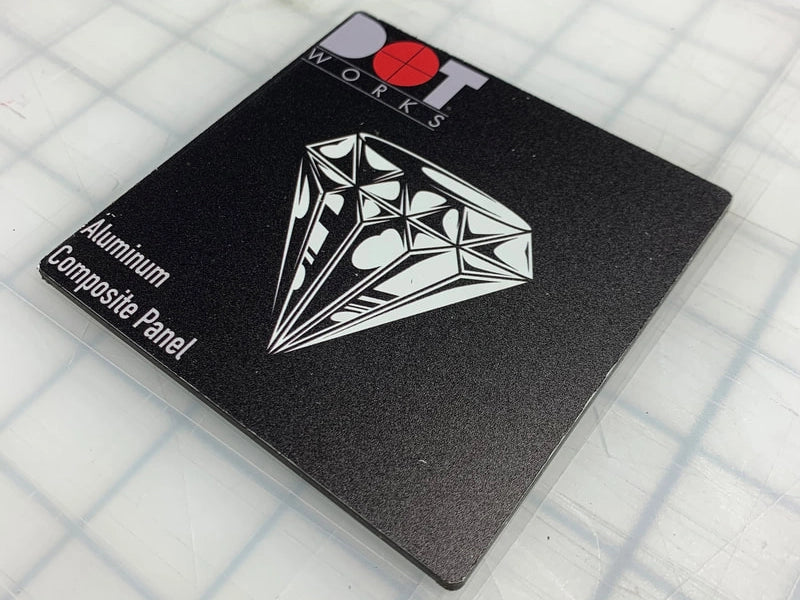

Dot Board Aluminum Composite Panel
Dot Board Aluminum Composite Panel - is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
High Quality Aluminum Composite Panel for outdoor and indoor use in the sign market. Our aluminum composite panel is comprised of two aluminum faces with a rigid, lightweight polyethylene core. This product is treated for direct printing.
- Aluminum Face both sides polyethylene core
- Face Thickness .21 mm - Thicker than most competing panels
- Available in 3mm or 4mm Thick
- UV Printable
Product Description
|
Width |
1000mm/ 1220mm/ 1250mm/ 1500mm/1575mm etc. |
|
Length |
2440mm/4000mm or customized |
|
Thickness of Panel |
2-8mm |
|
Thickness of Aluminum |
0.05-0.5mm |
|
Color |
Standard colors |
|
Top coating |
PE coating for indoor (5-8 years guarantee) / PVDF coating for outdoor (20 years guarantee) |
|
Top Skin |
Aluminum alloy coated with PVDF / PE resin |
|
Back Skin |
Aluminum alloy sheet coated with primer / mill finish |
|
Core |
Non-toxic & low-density polyethylene (LDPE) plastic |
|
Density |
0.5-0.55g/cm³ |
|
Flame Expansion |
BS476-7 S1 |
|
FR rated |
GB8254-1997 A Class |
Performance
|
Testing Project |
Unit |
Test Result |
|
Deflection temperature under heat |
.C |
117 |
|
Flexural Rigidity |
Kg/mm2 |
14.0*1.05 |
|
Flexural Elasticity |
Kg/mm2 |
4055 |
|
Tensile Strength |
Mpa |
49.6 |
|
Flexural Strength |
Mpa |
108 |
|
Fire propagation |
Class B 1 |
|
|
Smoke develop |
≤45 |
|
|
Finishing coating thickness |
um |
29 |
|
Pencil hardness |
H |
3H |
|
Impact resistance |
No crack after 60kg./cm. |
|
Features
1. Excellent rigidity and impact resistance
2. Acid-resistant and alkali-resistant
3. Easy to clean and maintain
Applicant
1. Interior and exterior wall cladding for commercial or residential buildings
2. Waterproof sheets for bathroom, kitchen, ceiling
3. Decoration material for shops, hotel, subway
4. Building construction materials, material for vehicle, boats, traffic signage boards, and decorative panel for cabinets.
Dot Board Aluminum Composite Panel
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Dot Board Aluminum Composite Panel
High Quality Aluminum Composite Panel for outdoor and indoor use in the sign market. Our aluminum composite panel is comprised of two aluminum faces with a rigid, lightweight polyethylene core. This product is treated for direct printing.
- Aluminum Face both sides polyethylene core
- Face Thickness .21 mm - Thicker than most competing panels
- Available in 3mm or 4mm Thick
- UV Printable
Product Description
|
Width |
1000mm/ 1220mm/ 1250mm/ 1500mm/1575mm etc. |
|
Length |
2440mm/4000mm or customized |
|
Thickness of Panel |
2-8mm |
|
Thickness of Aluminum |
0.05-0.5mm |
|
Color |
Standard colors |
|
Top coating |
PE coating for indoor (5-8 years guarantee) / PVDF coating for outdoor (20 years guarantee) |
|
Top Skin |
Aluminum alloy coated with PVDF / PE resin |
|
Back Skin |
Aluminum alloy sheet coated with primer / mill finish |
|
Core |
Non-toxic & low-density polyethylene (LDPE) plastic |
|
Density |
0.5-0.55g/cm³ |
|
Flame Expansion |
BS476-7 S1 |
|
FR rated |
GB8254-1997 A Class |
Performance
|
Testing Project |
Unit |
Test Result |
|
Deflection temperature under heat |
.C |
117 |
|
Flexural Rigidity |
Kg/mm2 |
14.0*1.05 |
|
Flexural Elasticity |
Kg/mm2 |
4055 |
|
Tensile Strength |
Mpa |
49.6 |
|
Flexural Strength |
Mpa |
108 |
|
Fire propagation |
Class B 1 |
|
|
Smoke develop |
≤45 |
|
|
Finishing coating thickness |
um |
29 |
|
Pencil hardness |
H |
3H |
|
Impact resistance |
No crack after 60kg./cm. |
|
Features
1. Excellent rigidity and impact resistance
2. Acid-resistant and alkali-resistant
3. Easy to clean and maintain
Applicant
1. Interior and exterior wall cladding for commercial or residential buildings
2. Waterproof sheets for bathroom, kitchen, ceiling
3. Decoration material for shops, hotel, subway
4. Building construction materials, material for vehicle, boats, traffic signage boards, and decorative panel for cabinets.
